Sterilization and reprocessing of dental handpieces

A handpiece is one of the harder instruments in a dental practice to reprocess properly. It has narrow internal channels, precision bearings that dislike both moisture and high temperature, and it is used in an aerosol-generating procedure. Getting it right is a patient-safety requirement first and a cost issue second — but it happens to be the single biggest lever on how long your handpieces last.

The reprocessing chain

Handpieces are not simply "sterilized". They go through a sequence, and skipping or reordering a step is what causes most avoidable damage.

1. Point-of-use treatment. Immediately after use, purge the air and water lines and wipe the exterior. Debris and cement left to dry become abrasive material inside the head.
2. Cleaning. External surfaces cleaned with a compatible, approved cleaning agent or wipe. Most manufacturers specify whether the handpiece can be immersed or only wiped — follow that exactly.
3. Lubrication. Air turbines use a turbine lubricant; electric attachments use the lubricant the manufacturer specifies and almost never turbine oil. Lubricate before sterilization, not after, unless the IFU says otherwise.
4. Run-off. Briefly run the handpiece after lubrication so the oil is distributed and any excess is expelled. Excess lubricant becomes a magnet for debris.
5. Packaging. Sterilization pouch or cassette appropriate for the cycle, so that the instrument stays sterile after removal.

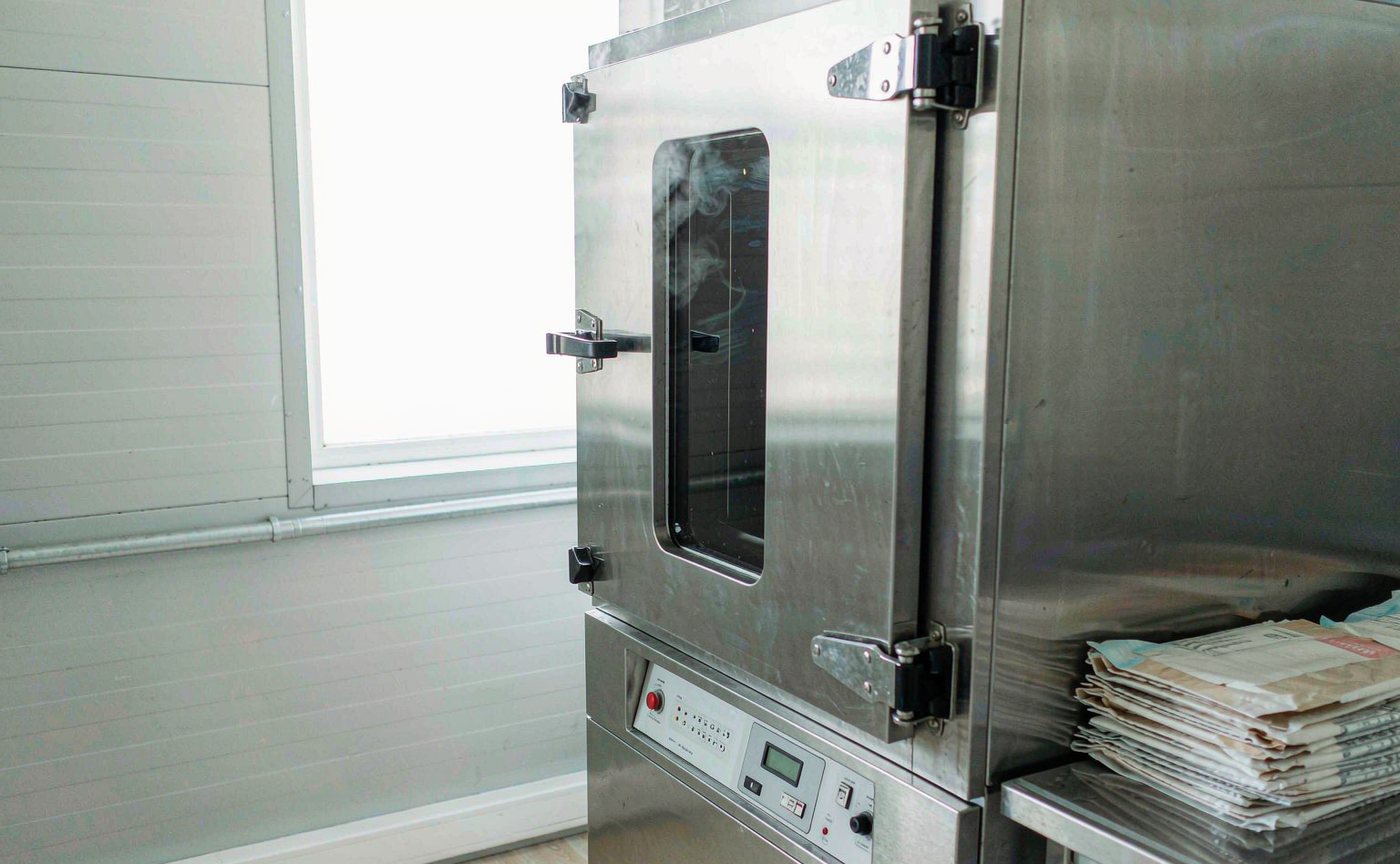

6. Sterilization. Steam under pressure (autoclave), with parameters appropriate for a hollow, lumened instrument.
7. Drying. A drying stage, or a cycle that includes one. Wet handpieces are corroding handpieces.
8. Storage. Protected, dry, and used within the period your practice's policy defines.

Cycle parameters

Handpieces are hollow instruments with internal channels. That has a practical consequence: air has to be removed from those channels before steam can reach them, which is why a vacuum-assisted (type B) cycle is generally the expectation for handpieces in a clinical setting, rather than a simple gravity displacement cycle.

Those numbers are typical values, not a universal instruction. Regulatory expectations differ between countries — for example the CDC guidance used in the United States, HTM 01-05 in the United Kingdom, and national equivalents elsewhere — and manufacturer instructions take precedence over any general figure. The point is to know your own numbers rather than assume.

Why drying matters more than people think

A handpiece that comes out of the autoclave and still has water sitting inside the head has a problem that shows up weeks later as bearing noise. There are three mechanisms:

• Corrosion. Steel bearings exposed to residual moisture pit at the raceways.
• Lubricant displacement. Water washes the lubricant film out of the places it needs to be.
• Later contamination. A damp instrument in a pouch can wick contaminants through the packaging seal.

If your sterilizer has no post-cycle drying and the handpiece comes out wet, that is a fixable equipment problem and usually a cheap one compared with replacing cartridges.

Eight mistakes that cost bearings

1. Sterilizing before cleaning. Residue is cooked onto surfaces and into the head.
2. Using turbine oil on an electric attachment. The gearing is not designed for it; performance degrades and the gear set fails early.
3. Over-lubricating. Excess oil collects debris. More is not better.
4. Not running the handpiece after lubrication. Oil never reaches the bearing, and excess stays inside.
5. Sterilizing above the handpiece's maximum temperature. Silent, cumulative damage.
6. No drying stage. Corrosion on every cycle.
7. Dirty or wet drive air. Not technically a sterilization mistake, but it destroys bearings as reliably as heat does — check the dryer and filters.
8. No cycle record. Without a log you cannot know when a cartridge reaches its rated cycle life, so replacements happen after failure instead of before.

Cycle logging and documentation

Manufacturers normally publish a maximum number of sterilization cycles for their turbine cartridges. Reaching it is a wear indicator, not a guarantee of failure, but it is the best predictor available. Practically:

• Give each handpiece an identifier so its cycles can be attributed to it.
• Record every reprocessing cycle — a tally or a barcode scan, whichever actually gets done.
• Track chemical and biological indicator results against the same log.
• Record servicing and cartridge replacements too, so the cost per cycle becomes visible.

Once cycles are counted, "this one is noisy, replace it" becomes a decision with a number behind it. That is also how you decide between repairing and replacing.
